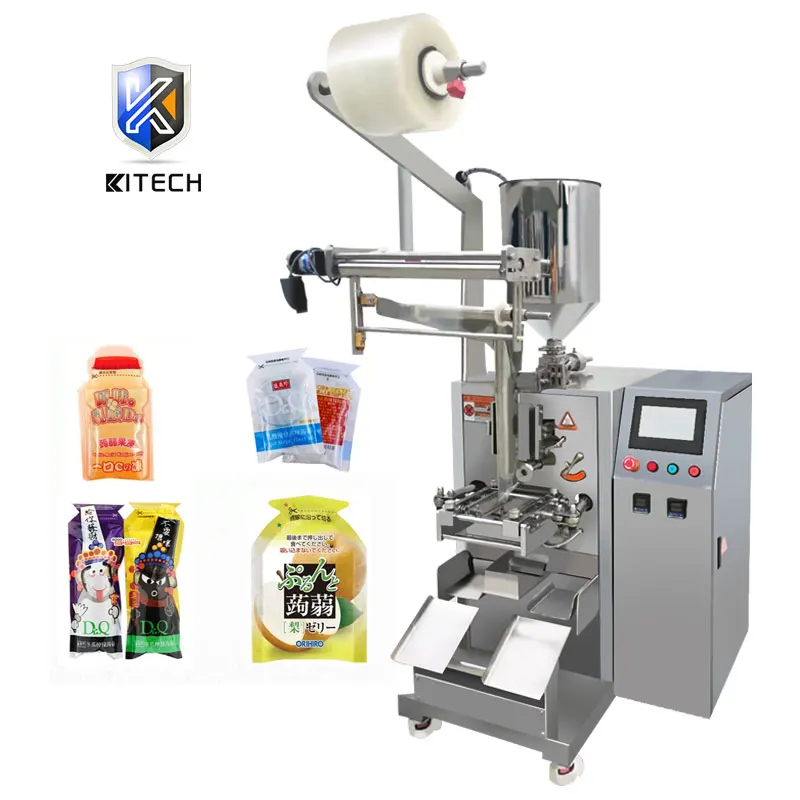

Name: KL-160 Irregular Shape Pouch Sachet Fruits Jelly From Fill Seal Packing Machine with Automatic
SKU: 3111
Availability: InStock

Description

Machine Structure and Parameters

Machine Model	KL-100YS	KL-160YS
Machine name	Irregular shape pouch/sachet fruits jelly from fill seal packing machine with automatic
Metering Accuracy	±0.1g (depending on the material)	±0.5 g (depending on the material)
Double scale weighing accuracy	±0.1g
Measurement range	0.5-50 g	3-80 g
Packaging speed	50-70 bag/min
Bag shape	Pillow bag/Stick sachet/3 side sealing/4 side sealing/Custom made
Film width	40-220 mm	60-260 mm
Bag-making length	40-135 mm	50-135 mm
Bag-making width	15-110 mm	30-120 mm
Power	1.5Kw
Power supply specifications	220V, 50Hz (support customization)
Machine weight	300 kg
Machine Size	13005602300 mm	13005602160 mm
Suitable for packaging products	Chili sauce, ketchup, juice, jelly, sauce, liquid, hand soap, shampoo, cooking oil, lotion, cream, etc.
Additional configuration	Coding printer/Gas-filled device/Bag conecting device/Punch device/Easy to tear gap device

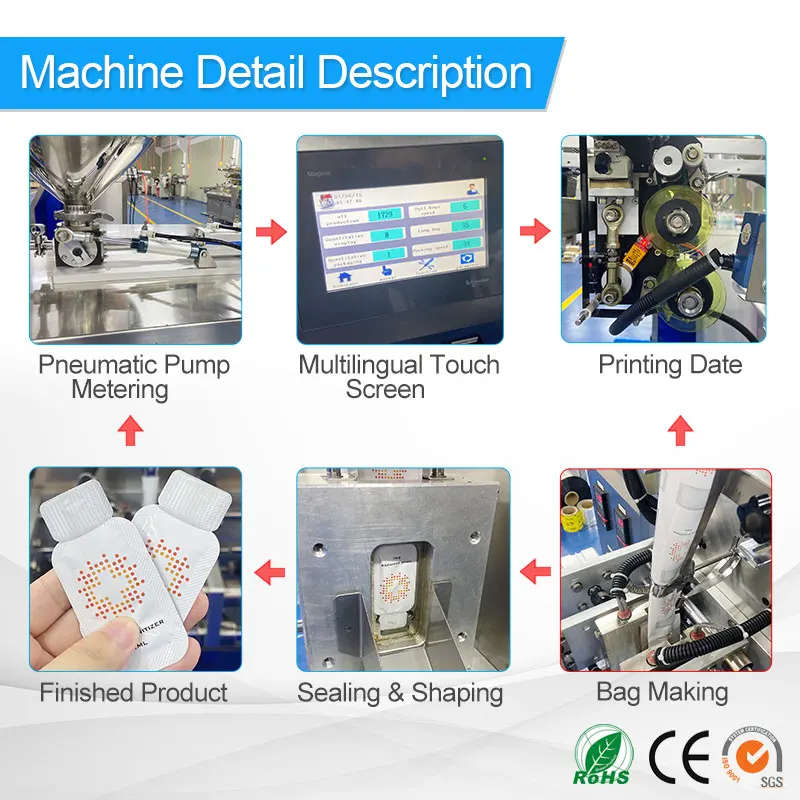

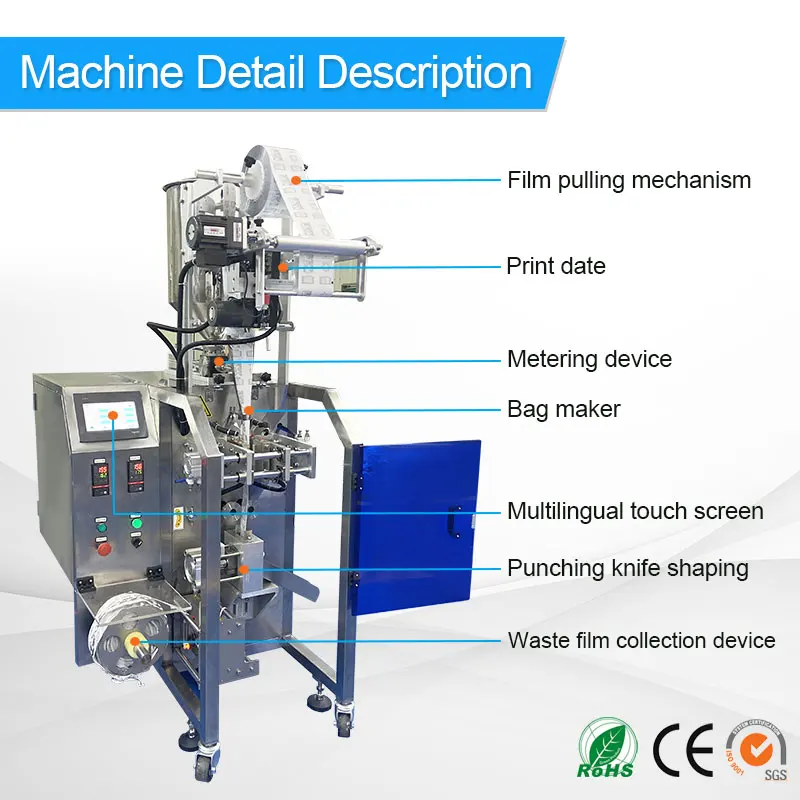

Machine Details

Multilingual Touch Screen

Multi-language touch screen can switch various languages at the same time, and when there is a problem with the machine, it will automatically alarm, pause the operation and show where the machine is in the problem.

Pneumatic pump metering device

Kitech exclusive patented technology device, using new custom pneumatic pump weighing, when the packaging weight is not accurate will automatically adjust to reach the preset weight, no manual operation to adjust, saving time and cost.

Double Scale Weighing Device

Kitech’s exclusive patented technology device,Secondary weighing and testing of the finished packaging products, when the packaging weight is not accurate, it will automatically reject the unqualified products and feed back to the measuring cup metering device system for automatic adjustment of the entire weight, which will increase the qualified rate products to 100%.

Servo Control System

Servo control system is used on machine weighing device, film pulling device, bag making and sealing. When there is a problem in one part, the machine will automatically stop running and alarm to remind the operator to check, therefore, one person can operate 15 machines at the same time to save cost.

Free Accessories

Application Products

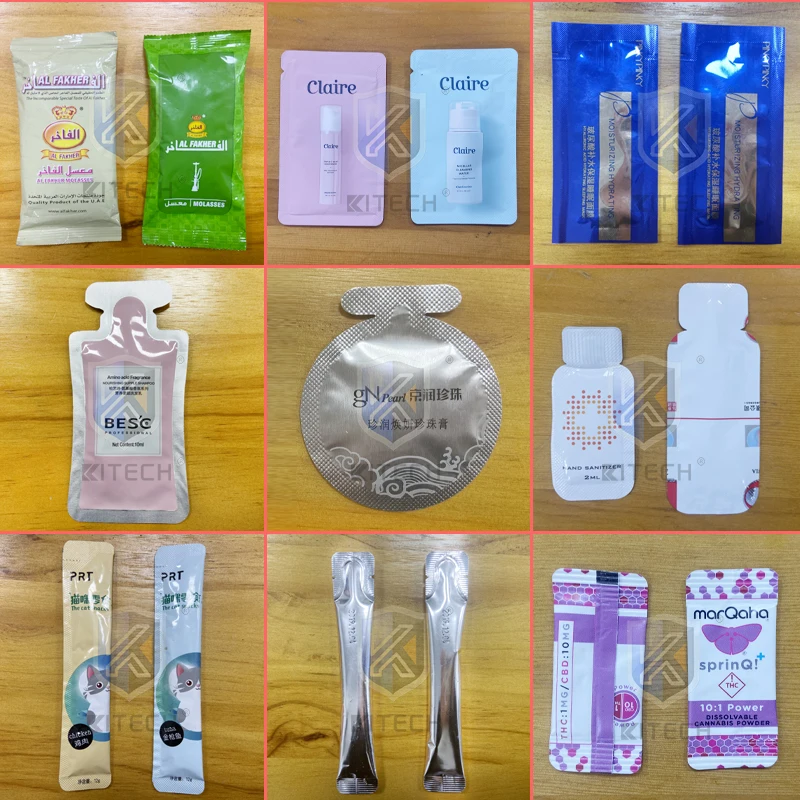

Bag Type

Optional Device

Kitech Company Profile

After-Sales Service

1、Installation Videos

We have for each part of the machine installation, filmed thousands of installation video, when you buy it do not have to worry about how to install the machine, we will have a professional video to teach you how to install and operate.

2、After-Sales Service Rating List

When the machine is ready, we will have a professional quality inspection team to help you check the quality of the machine and the use of the effect, after meeting the standard will communicate with you online video, the second verification of the quality of the machine, until you are satisfied, it will be packed and shipped.
After the machine is received and installed, we will send you an after-sales service sheet and ask you to evaluate our service pass rate. When the service score fails, we will check which service score is not up to standard and ask the after-sales personnel to achieve 100% customer acceptance satisfaction in accordance with the actual situation of the machine.

3、After Sales Team

We have more than 30 after-sales service team and 10 after-sales engineers with 20 years of after-sales experience, who are dedicated to solve your after-sales problems on various machines.
We support online video communication and overseas after-sales service (except during epidemic).

4、Customer Service Team

We will have regular (one week/3 months/half year) return calls to ask about the use of the machine, whether you need after-sales service, when you need after-sales service, we will arrange the after-sales master to help you solve the problem in the first time, to ensure your 100% satisfaction of use.

Make sample bags

If it’s necessary according to your requirements, we can make sample bags for your reference.
Machine adjustment before shipment
Our technical team will adjust the machine based on customer’s request and take video to send to our customer to show the running condition of the machine.
Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
Overseas door to door service
Our engineer overseas door to door service is available.
Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.

Remark

1.Our company accept the payment of L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa,Mastercard,
e-checking,PayPay,apple pay etc,confirm with our sales personnel finally please.
2.There may be charge when adding the additional configuration, please confirm with our sales personnel.
3.The packing machine final price need to confirm with our sales personnel.
4.Our company reserve all the right for the final explanation.
