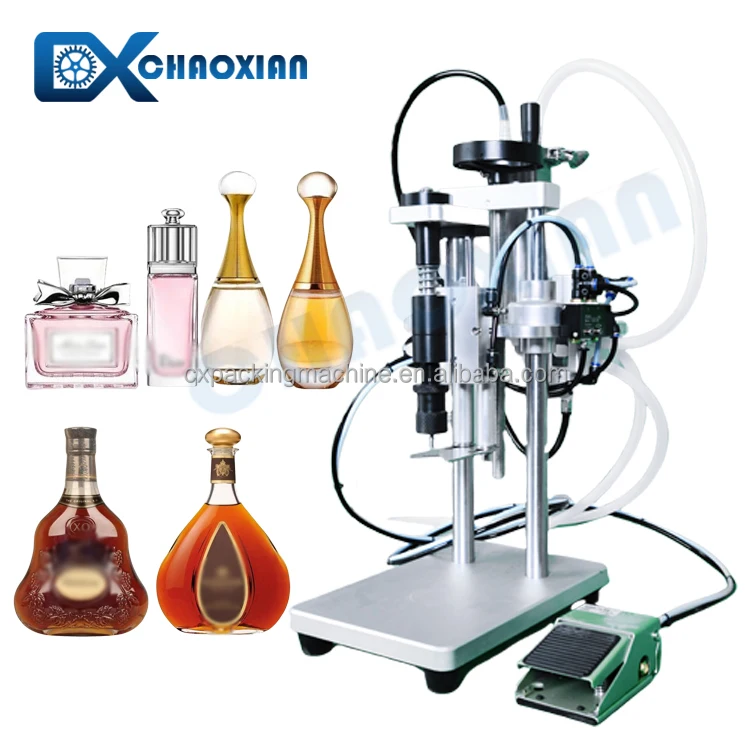

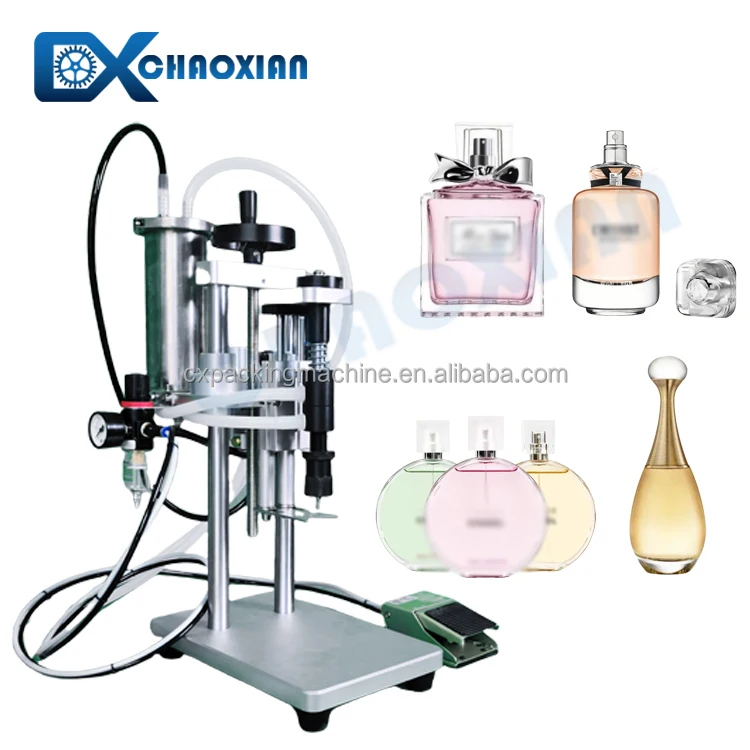

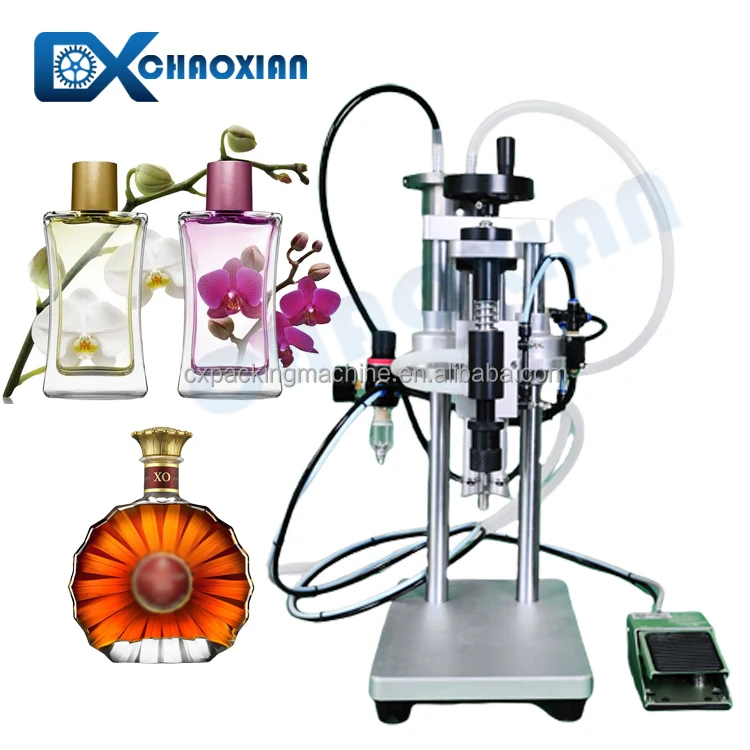

Cheap Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine

700,00 $

SKU: N/A Category:

Description

Product Description

Description:

This Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine is simpler and more convenient in terms of operation, accuracy error, filling adjustment, equipment cleaning, maintenance, etc. The fully pneumatic filling machine designed on this basis uses pneumatic components to replace the electrical control circuit, so it is particularly suitable for use in environments with explosion-proof requirements.
Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine adopts full pneumatic control, which is particularly suitable for filling high-foam and irregular products submitted by bottles.

Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine filling principle: through the filling head to apply pressure, the vacuum generator realizes a local sealed environment in the return bottle and the bottle to be filled, and produces a local vacuum environment. Filling is achieved by vacuum suction,


— Fixed liquid level filling
— Equipped with a return barrel automatic liquid products recovery system
— No strict requirements on bottle shape and consistency
— Simple structure, easy to operate and maintain

Application:

Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine is suitable for: perfume, skin care water, toner, gel water, fruit juice drinks, alcoholic beverages, mineral water, purified water, hair care products, skin care products, cosmetics, cleaning, washing products, oral liquid, potion.
Specification
Machine Model
FM-05O
Machine Name
Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine
Filling Speed
About 300-900 bottles per hour
(depending on proficiency and bottle size)
Filling Range
about 20-1000ml(can be customized)
Filling measuring method
Liquid level of the bottles
Filling nozzle quantity
1
Filling system
Vacuum negative pressure filling system
Bottle height
≤ 260mm (can be customized)
Bottle mouth
≤ 23mm outer diameter of the bottle mouth

(can be customized)
Bottle type
Glass bottles/ Hard enough plastic bottles
Driving mode
Fully pneumatic drives Filling Machine

(offered is not included air comporessor)
Working air pressure
≥0.06Mpa
Machine Material
Stainless Steel 304 + Anodized aluminum
Machine Size
About 210*370*550mm(L*W*H)
Package Size
About 260*420*650mm(L*W*H)
Gross Weight
About 20kg

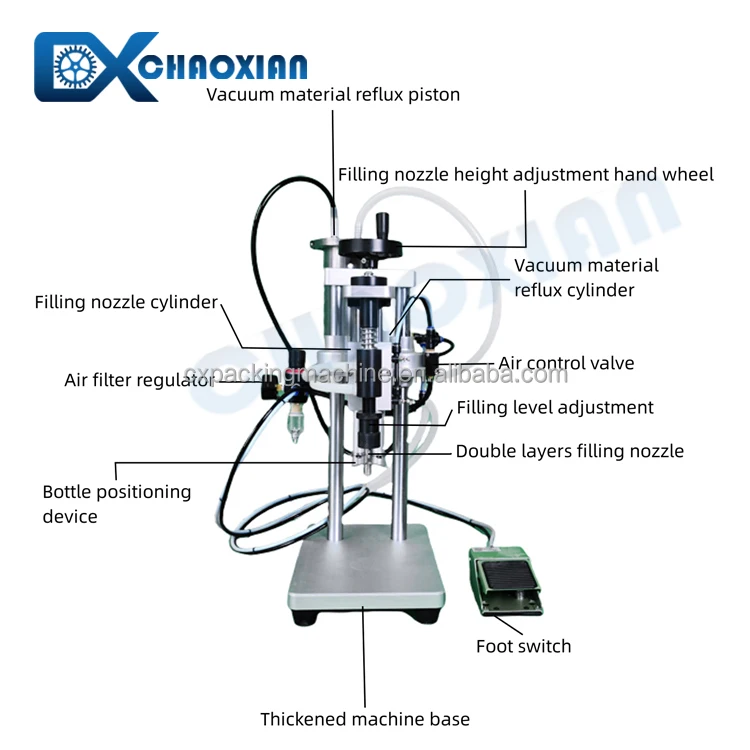

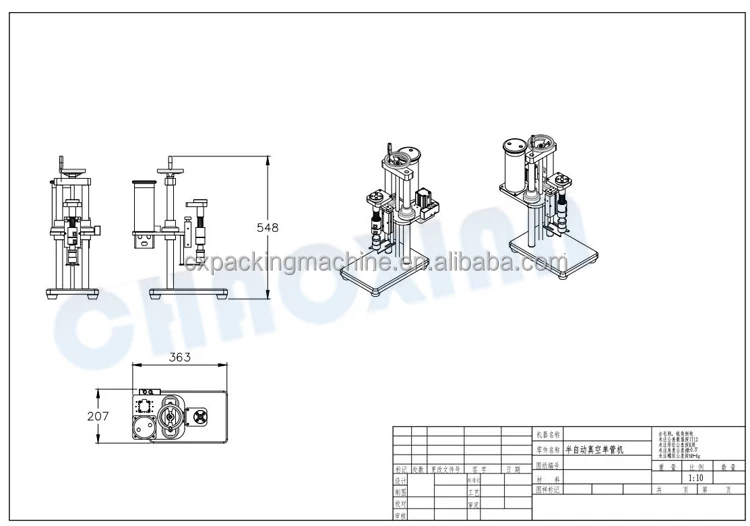

Design Drawing of Our Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine

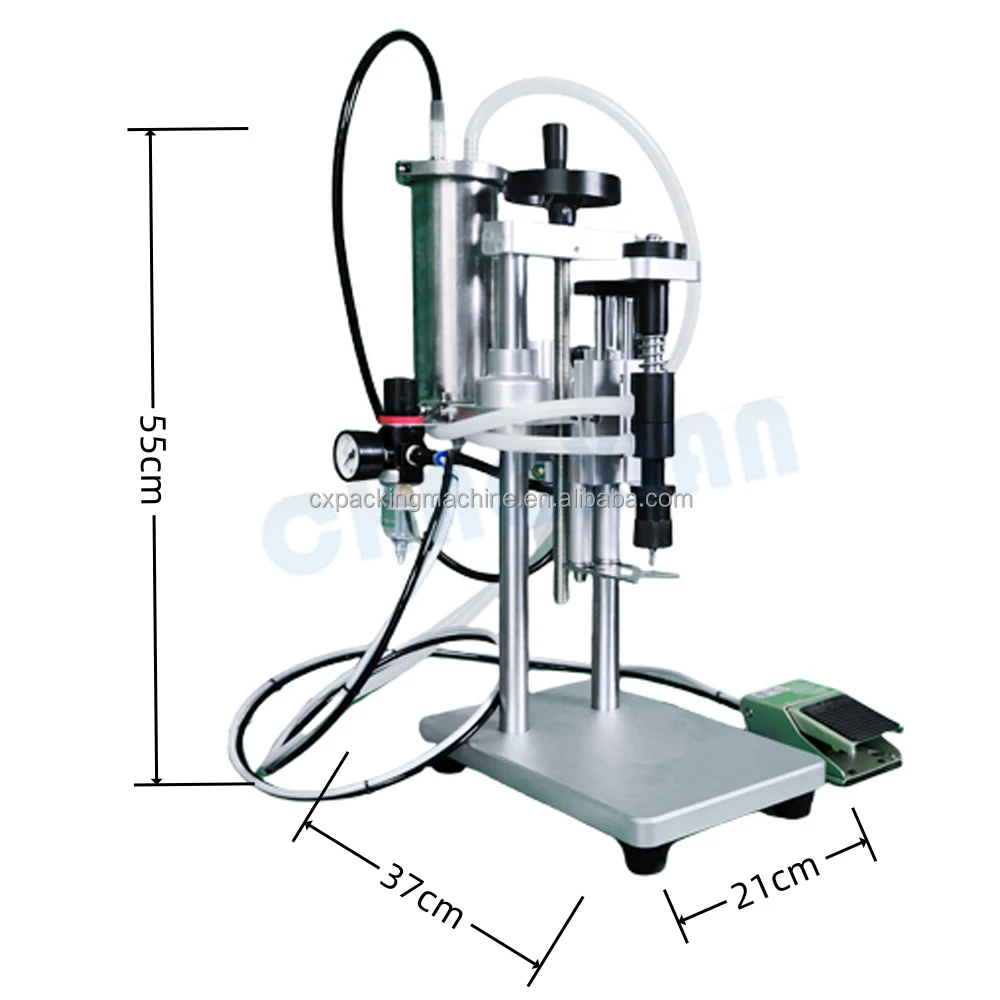

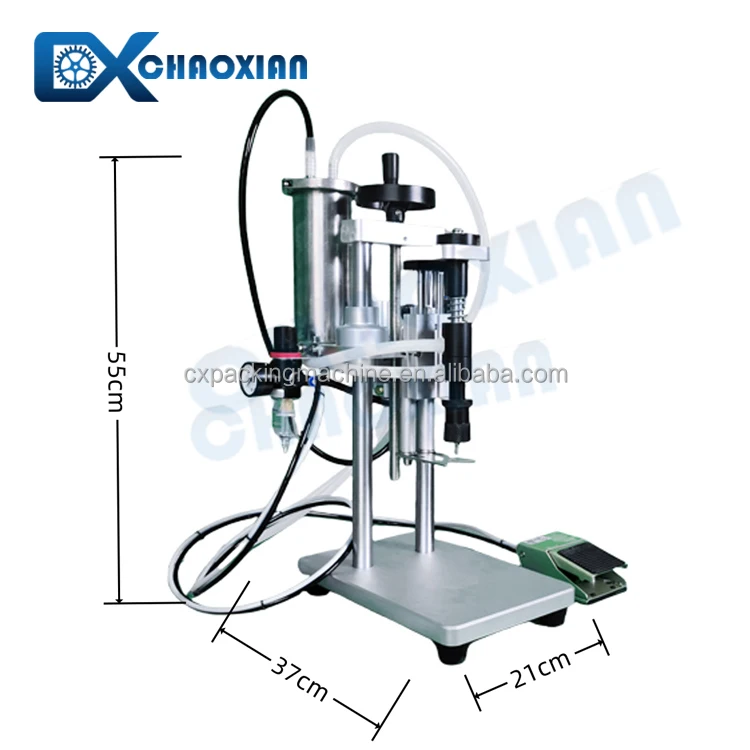

Size of Our Small Tabletop Fragrance Perfume Glass Bottle Filler Vacuum Cosmetics Beverage Bottle Wine Filling Machine

Machine Details

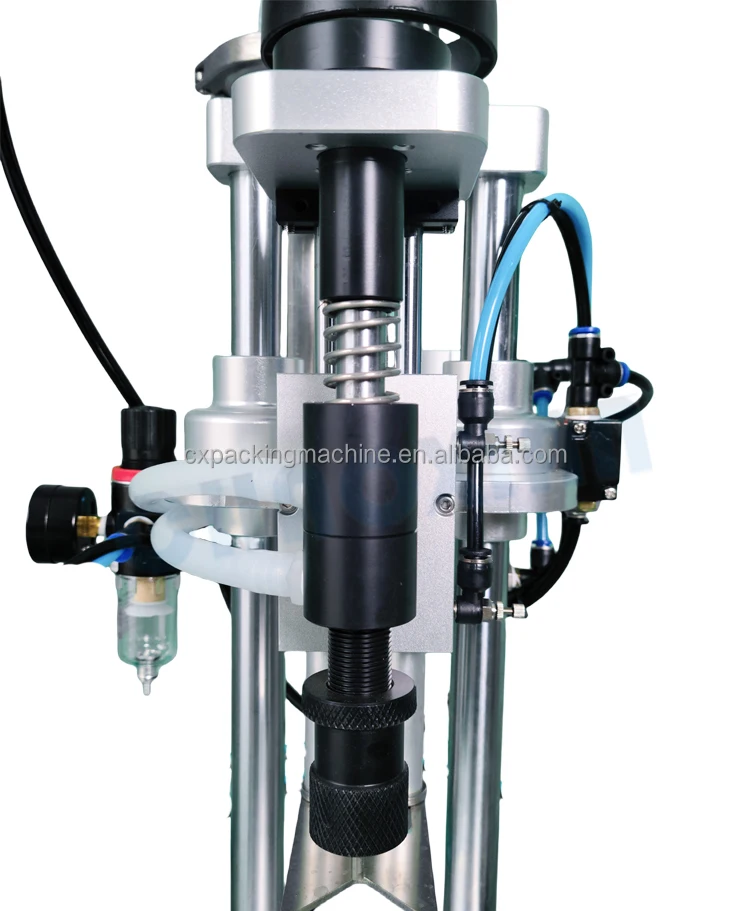

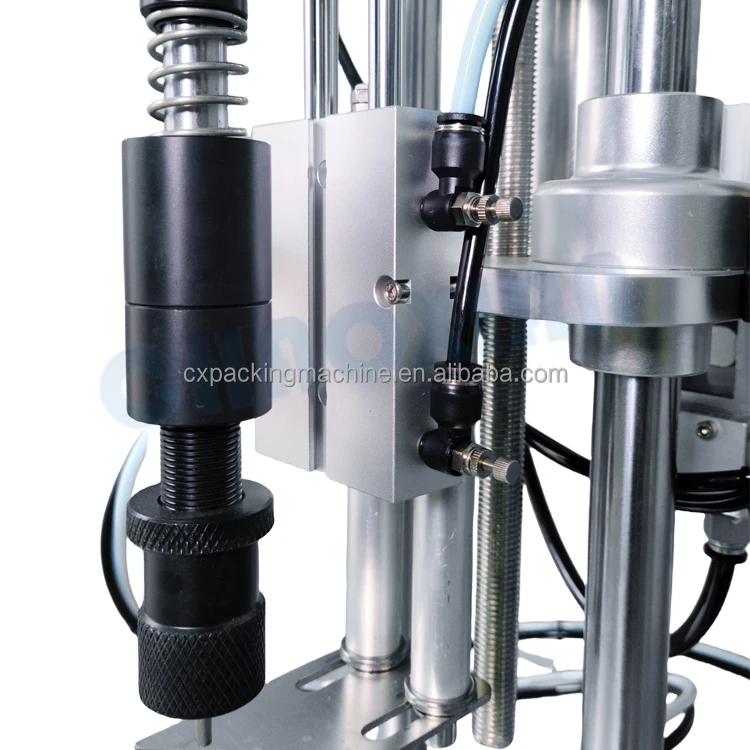

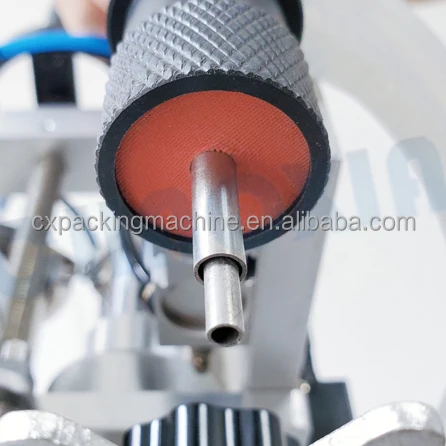

Double layers design filling nozzle

The filling nozzle is designed with double layers. The inner filling nozzle is used for filling, and the outer layer is used to call back the excess perfume liquid product and return it to the storage cylinder of the machine to achieve the consistency of the filling liquid.

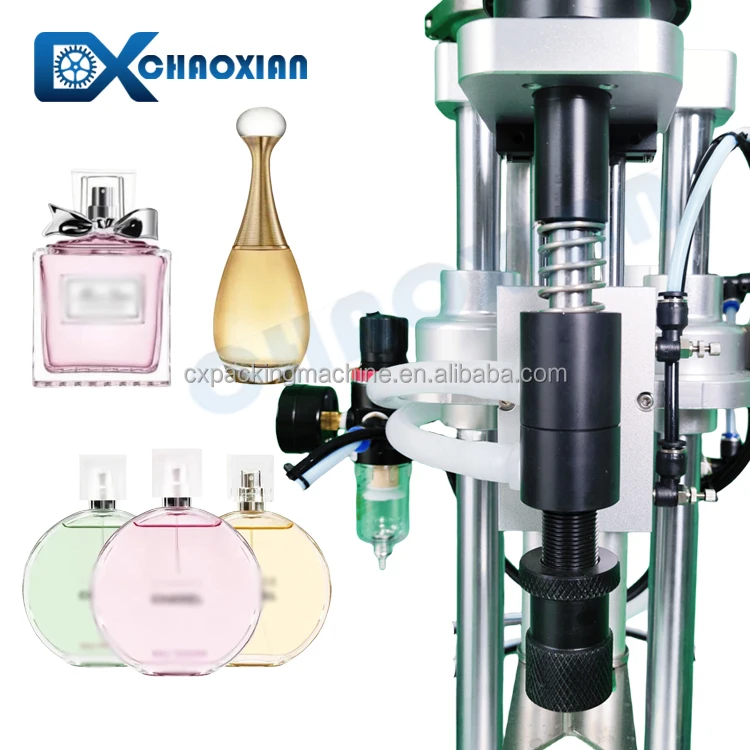

Liquid level adjustment filling nozzle

The double-layer filling nozzle has a liquid level adjustment function to meet your different requirements for the liquid level when filling products.
CE certified well-known brand filling nozzle lifting cylinder
The filling nozzle has a lifting function. During filling, the filling nozzle normally descends to the bottle mouth position, and then starts filling after sealing. After filling is completed, it returns to the standby position.
The CE-certified well-known brand filling nozzle lifting cylinder is used to allow the machine to run stably for a long time.

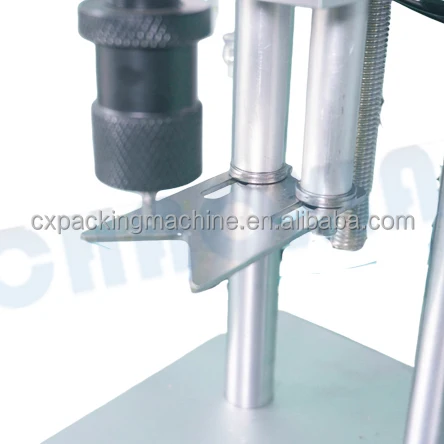

Adjustable bottle positioner

With adjustable bottle positioning device design, the machine can be used for 99% of perfume bottles on the market

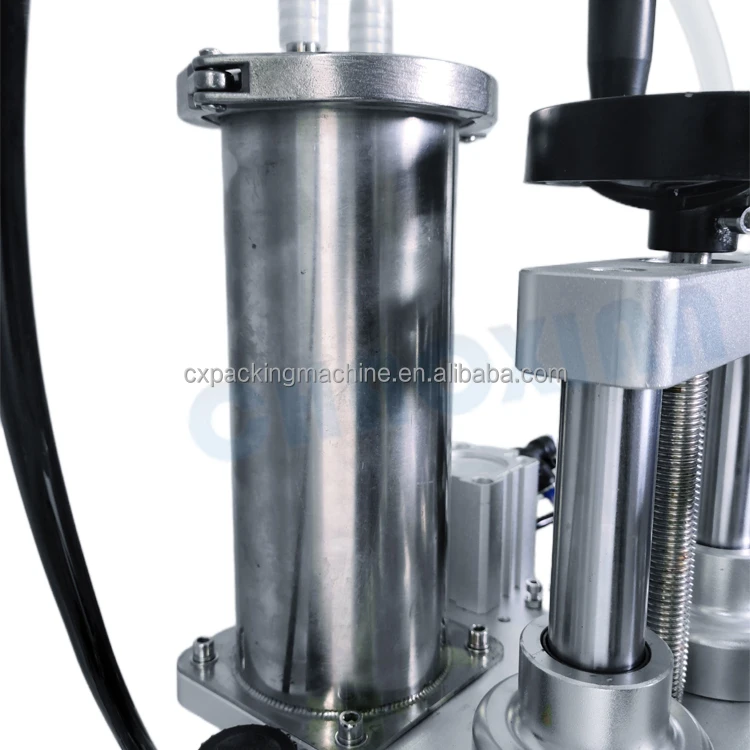

Stainless steel 304 liquid product return cylinder

The food grade stainless steel 304 reflux storage cylinder is suitable not only for perfume and toner products in the daily chemical industry, but also for juice, wine and other products in the food industry.




CE certified well-known brand reflux tank cylinder

Use CE certified well-known brand cylinders in the reflux tank to ensure that the machine maintains a stable negative pressure and high-speed perfect equal liquid level filling effect during the vacuum filling process






Filling nozzle height adjustment hand wheel

Adjustable filling nozzle height design,
industrial-grade adjustment hand wheel, effortless adjustment.





Pneumatic foot switch

CE certified well-known brand foot switch, durable.
Fully pneumatic design, can safely fill and produce perfume, wine, alcohol and other products containing high concentration of alcohol.

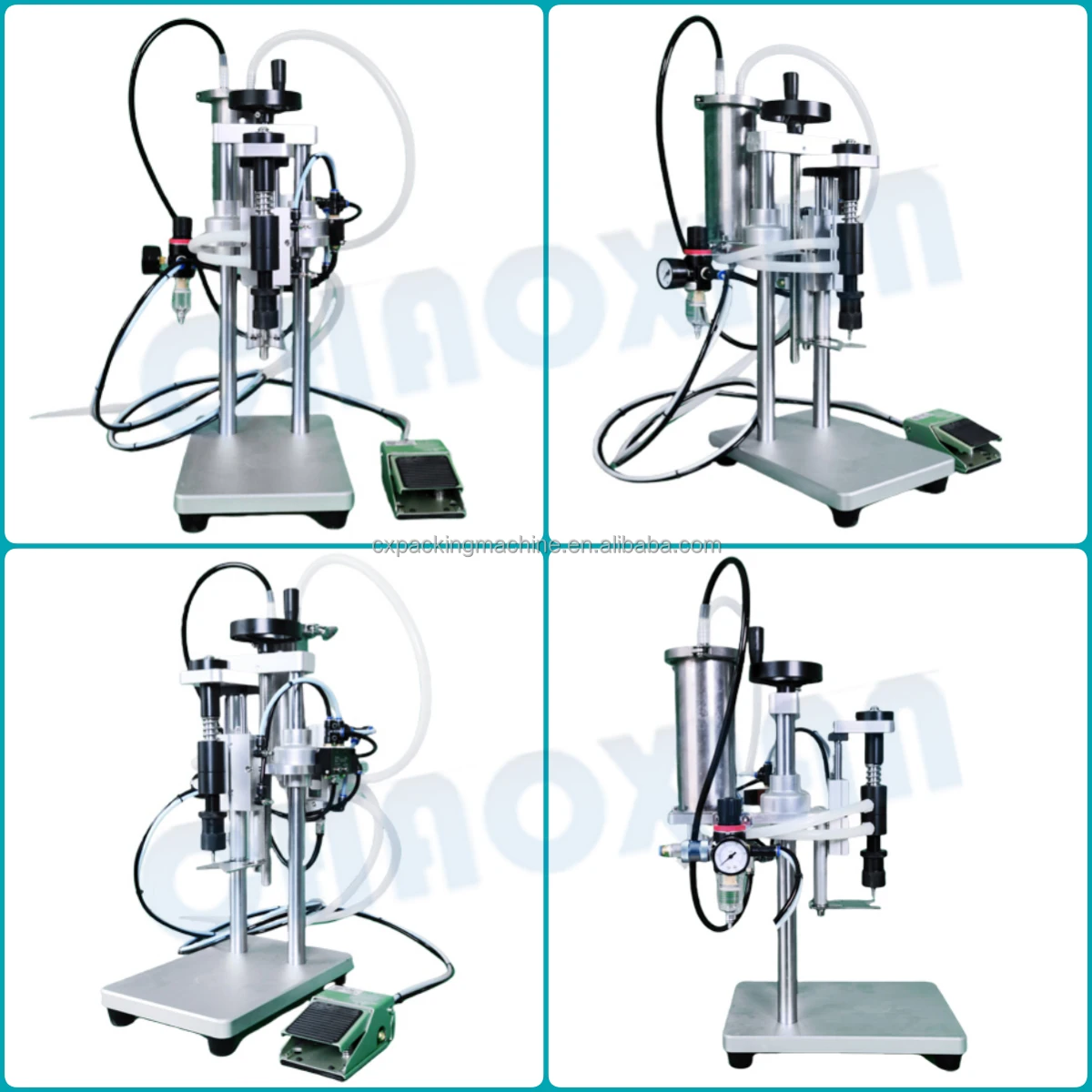

Machine Real Shot
Related Products
Company Profile
Why Choose Us
FAQ
Q: The same function machines, why do we choose your factory?
A: We are using thicker stainless sfeel, treated aluminum parts as our machines' material, machines' electronic accessorlesand pneumatic accessones are world famous brands, make sure machine's are good quality, running performance is stable

Q: Machines' industry is professional; we need a good understanding communication.
A: More than 70% sale men of our factory have Machine's knowledge, and we can speak good English, knowing the machinesmuch better than orders, surely we will have a good understanding of your machines' requirements.Operating language in the machine also can be designed in your own country language

Q: Do you have technical support for the machines?
A: We have professional after sales technical support team, 6 days * 8 hours and 24 hours limited giving fechnical supportsmake sure to take valid action for our customers once machines' have anything wrong or need any helping from us.


Q: Do you have a correct and clear machines operating manual?
A: Yes, surely we do have! Our machine manuals will be offered after adjusted, to make sure each of customers can get thecorrect and clear machines' operating manual.
Besides, to let our customers have a better understanding how to operate the machines, we will take operating videos for ourcustomers, introducing all the functions of the machines, how to adjust the machine, daily maintenance, etc.

Q: Will you supply us the technical drawings if we buy the machines from you?
A: Yes, after you purchase the machines from us, we will offer you the related drawings to you, like power cable drawing.touch screen program and other drawings

Q: We want to purchase automatilc model machines, but we are afraid that we don't know how to operate the machine.
A: Beside the normal operating manual, our factory will also offer you machines' technical drawings, machine videos manual,the operating system, and our machines' structures are designed friendly, easy to use the control system.
